Specification

Rim:

Material : Toray T800 full carbon fiber
Surface: UD matte
Size: 700C

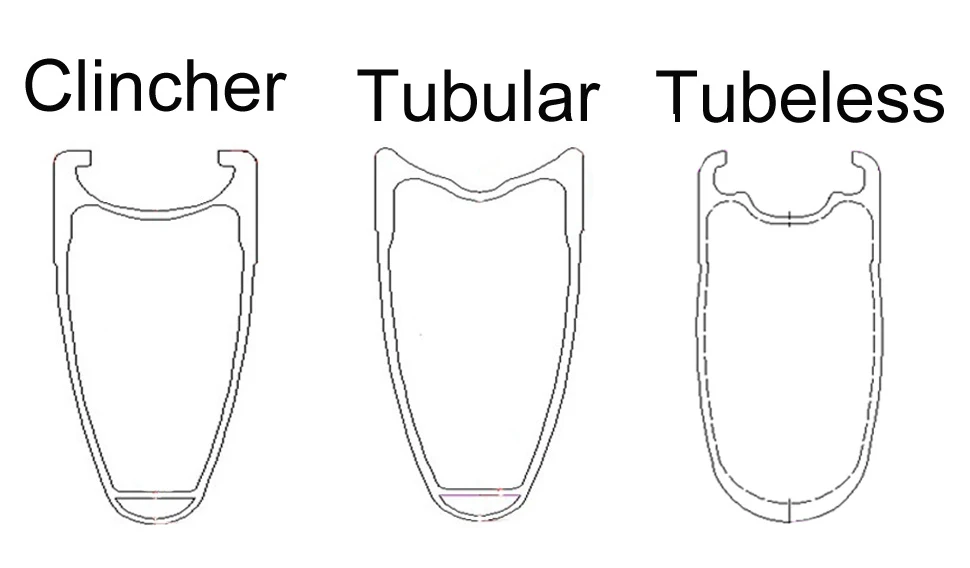

Profile: ,38mm,50mm,60mm,clincher tubeless
Rim width: External width 23mm, internal width 16mm, V shape
External width 25mm, internal width 18mm, U shape

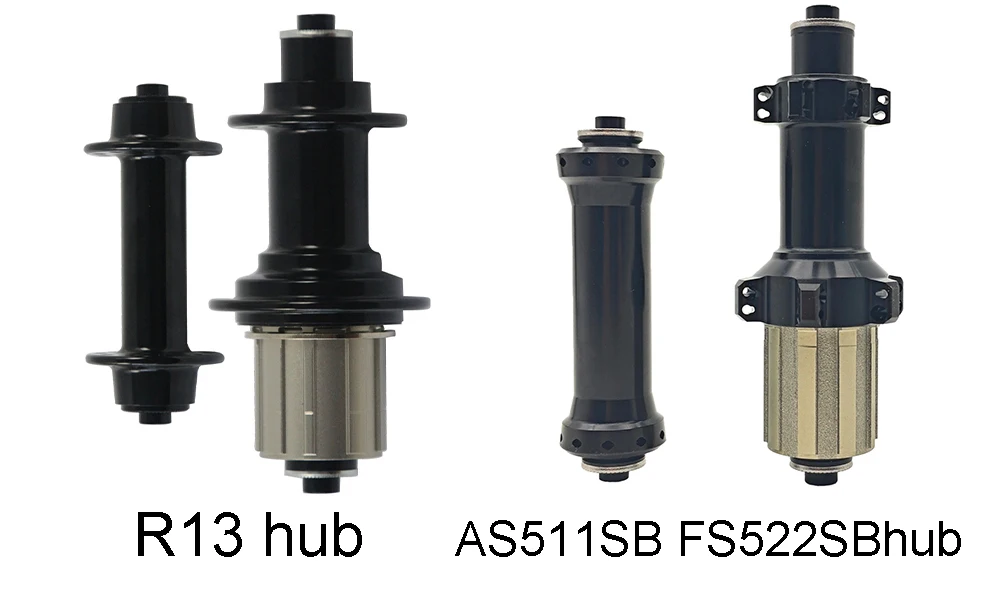

Hub Model:

Powerway R13 hub (black colour )
AS511SB/FS522SB hub(black colour)
Cassette body:
Shiman0 8/9/10/11s

Spokes Model:

CN MAC Aero 494 spokes for R13 Hub
Pillar Aero 1432 spokes for AS511SB FS522SB Hub
Hole:
Front 20H, Rear 24H, External hole
Lacing:
Front : Radial, Rear: 2X cross drive side, Radial Non-drive side

Nipples Material:
Aluminum nipples (black colour available)
Including:
Skewers, brake pads, extra spokes+nipples. clincher wheels including rim tape

(tubeless wheels do not include tubeless rim tape, tubeless valve)

Wheelset Weight excluding skewers and rim tape:

width : 23mm
deep ：
38mm 1520g+-30g
50mm 1600g+-30g
60mm 1680g+-30g

width : 25mm
deep ：
38mm 1560g+-30g
50mm 1620g+-30g
60mm 1680g+-30g

Max recommend rider weight: 120kg

Buyer's Guidance

Finish: UD matte
Cassette body: shiman0 8/9/10/11s
Colour of hub: black
Colour of spokes: black
Colour of nipples: black

3.) Price includes all taxes
4. ) 1 year Warranty: We offer you our high quality and customers-tested products ,We have a quality assurance date which is 1 years.

Under normal riding, if there is any damage not caused by human factors, products can be replaced from us.

Difference of rim finish

Diagiam and more photos:

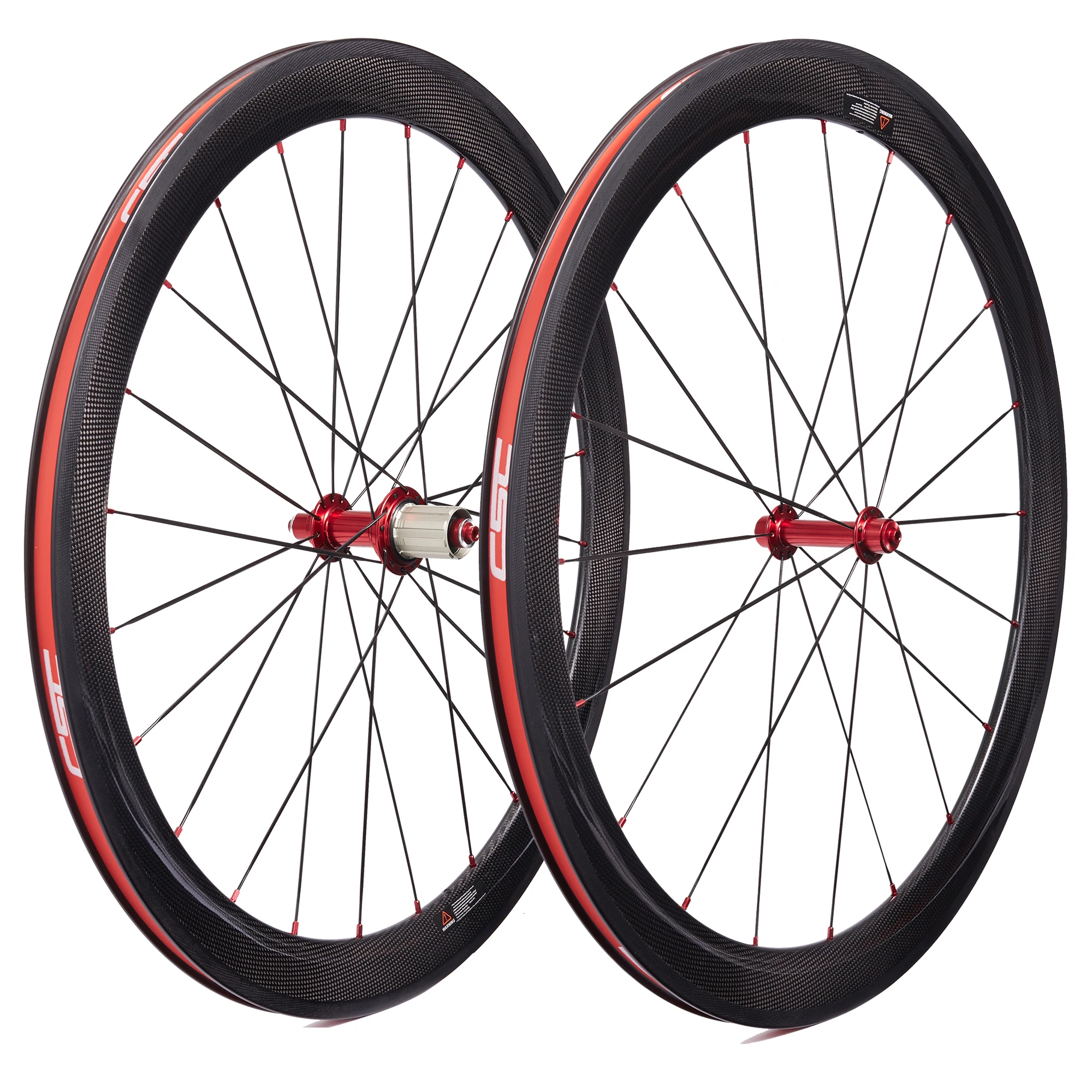

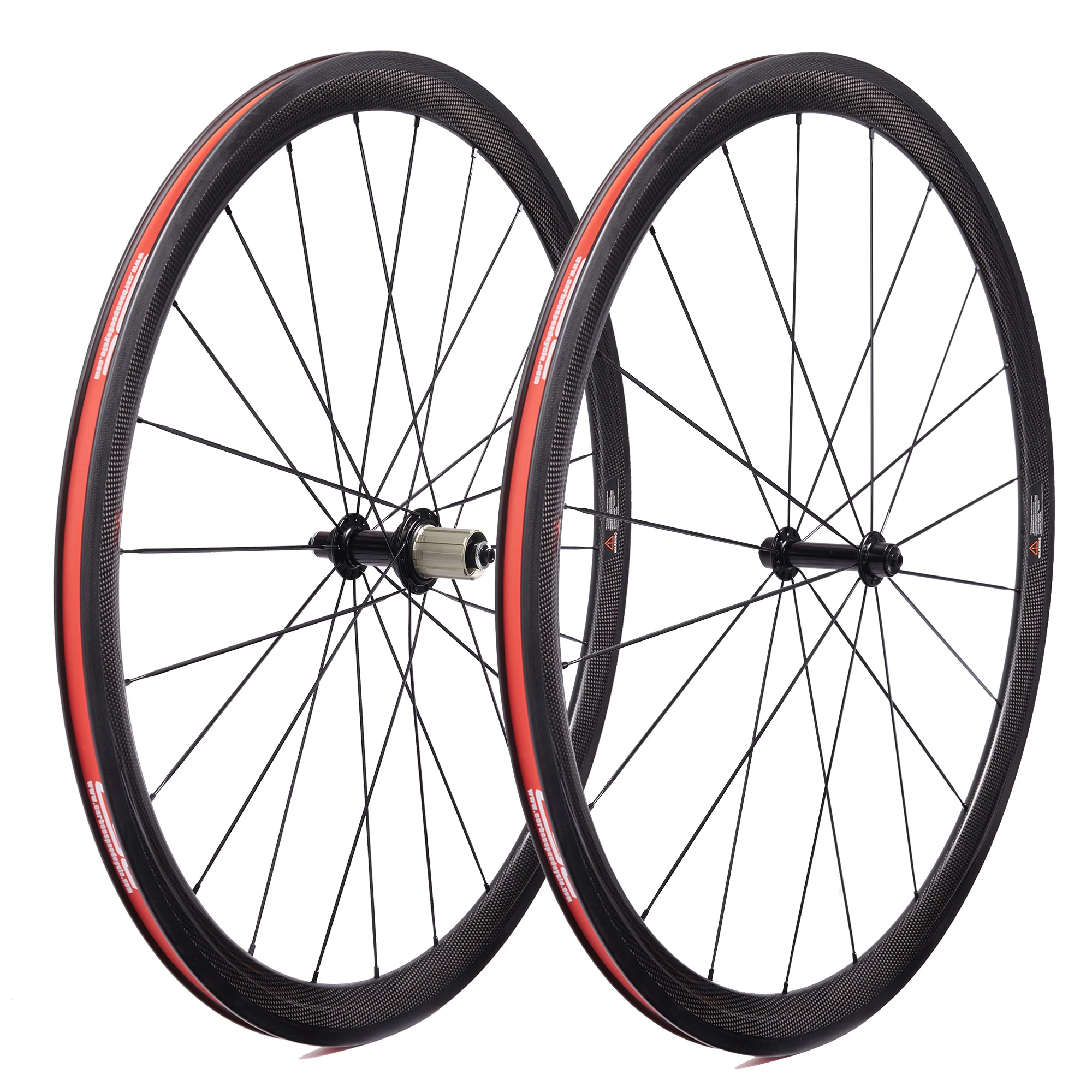

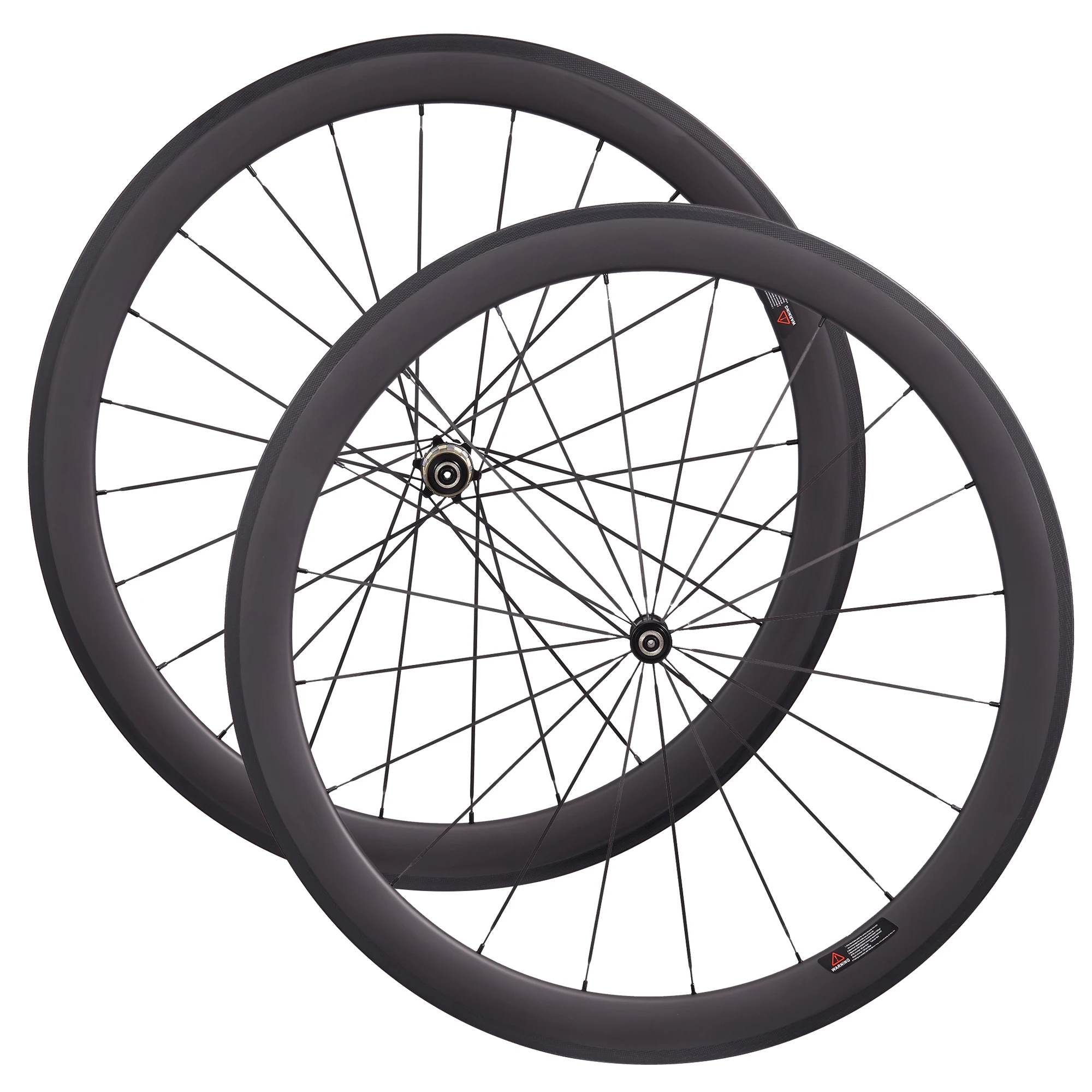

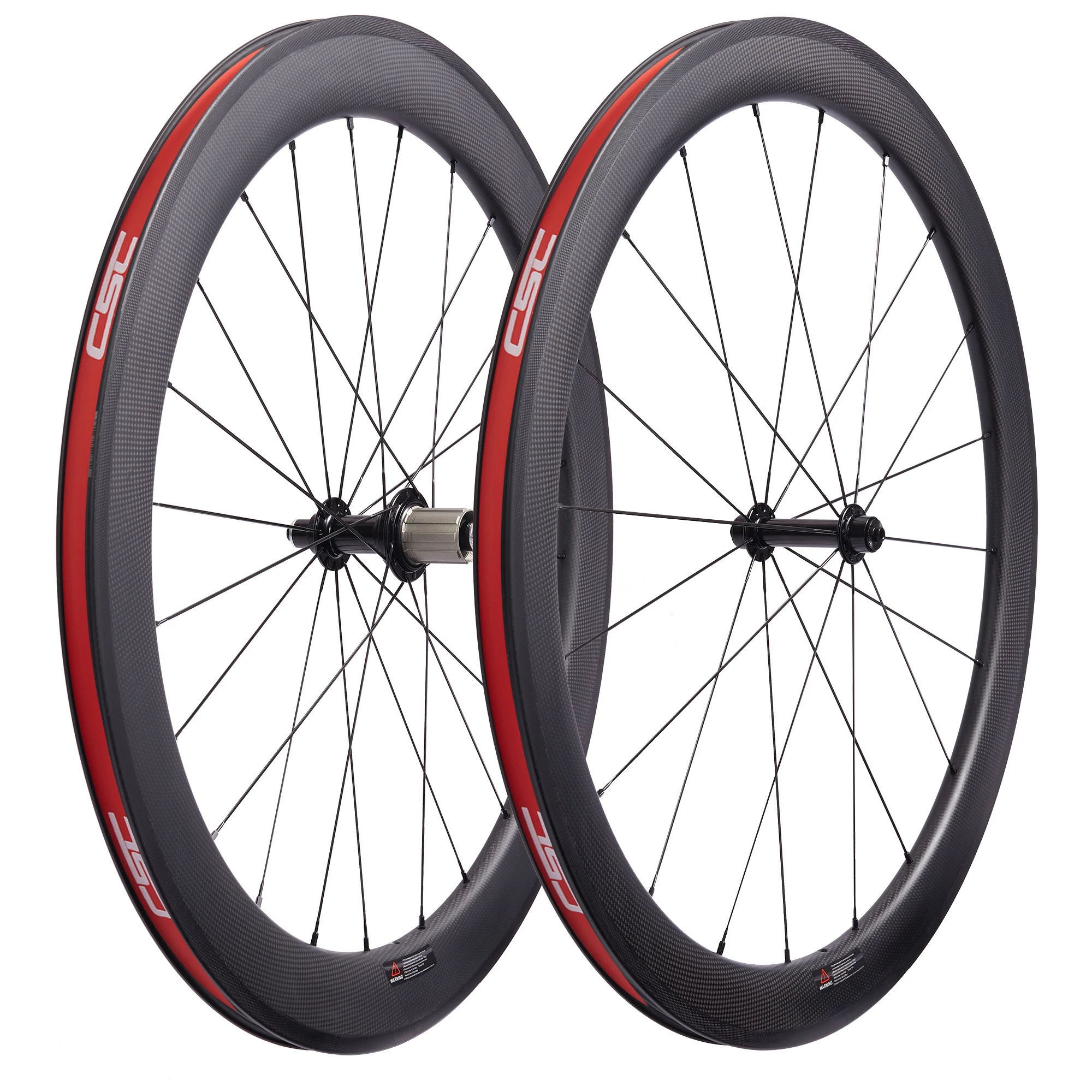

38mm 50mm 60mm clincher with R13 hub

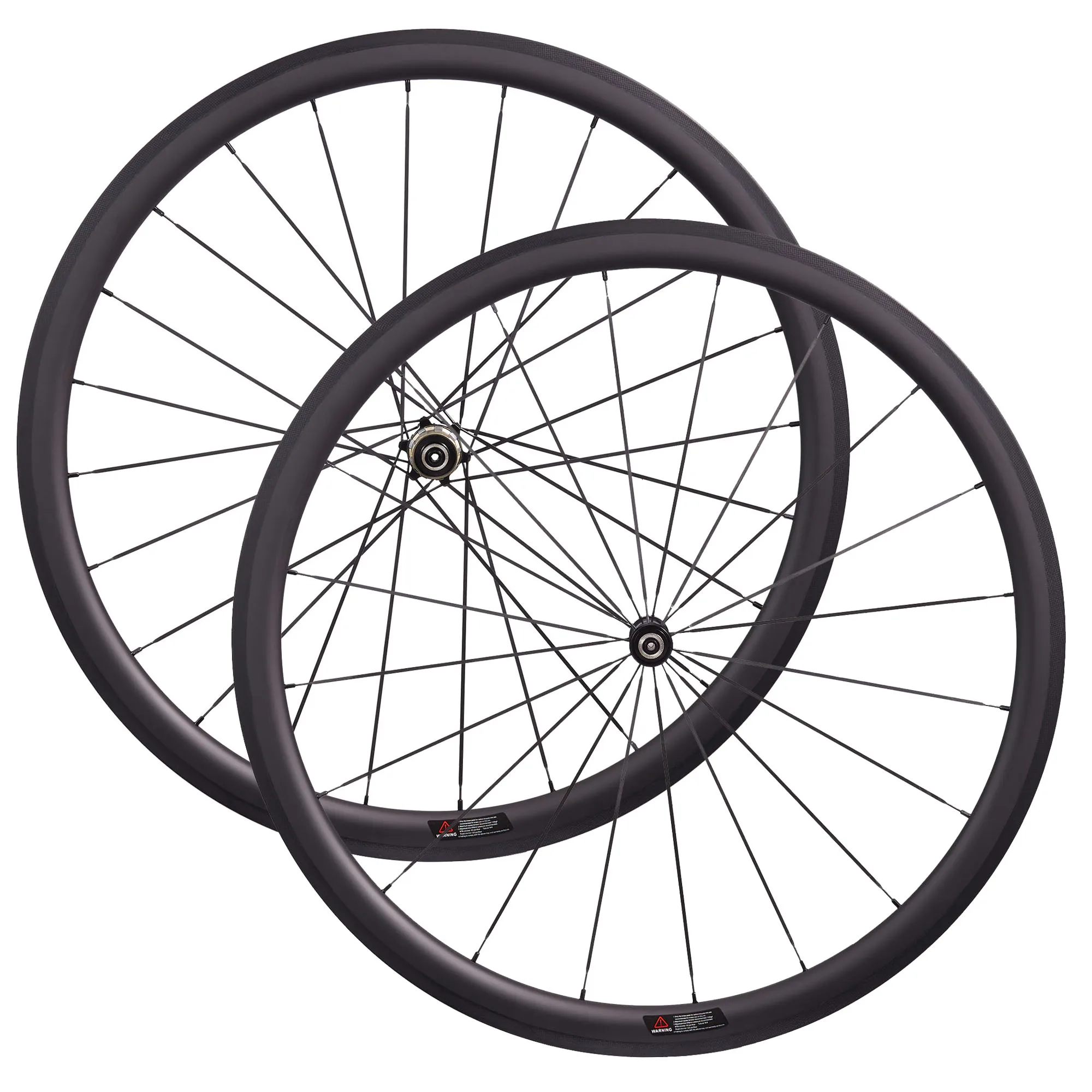

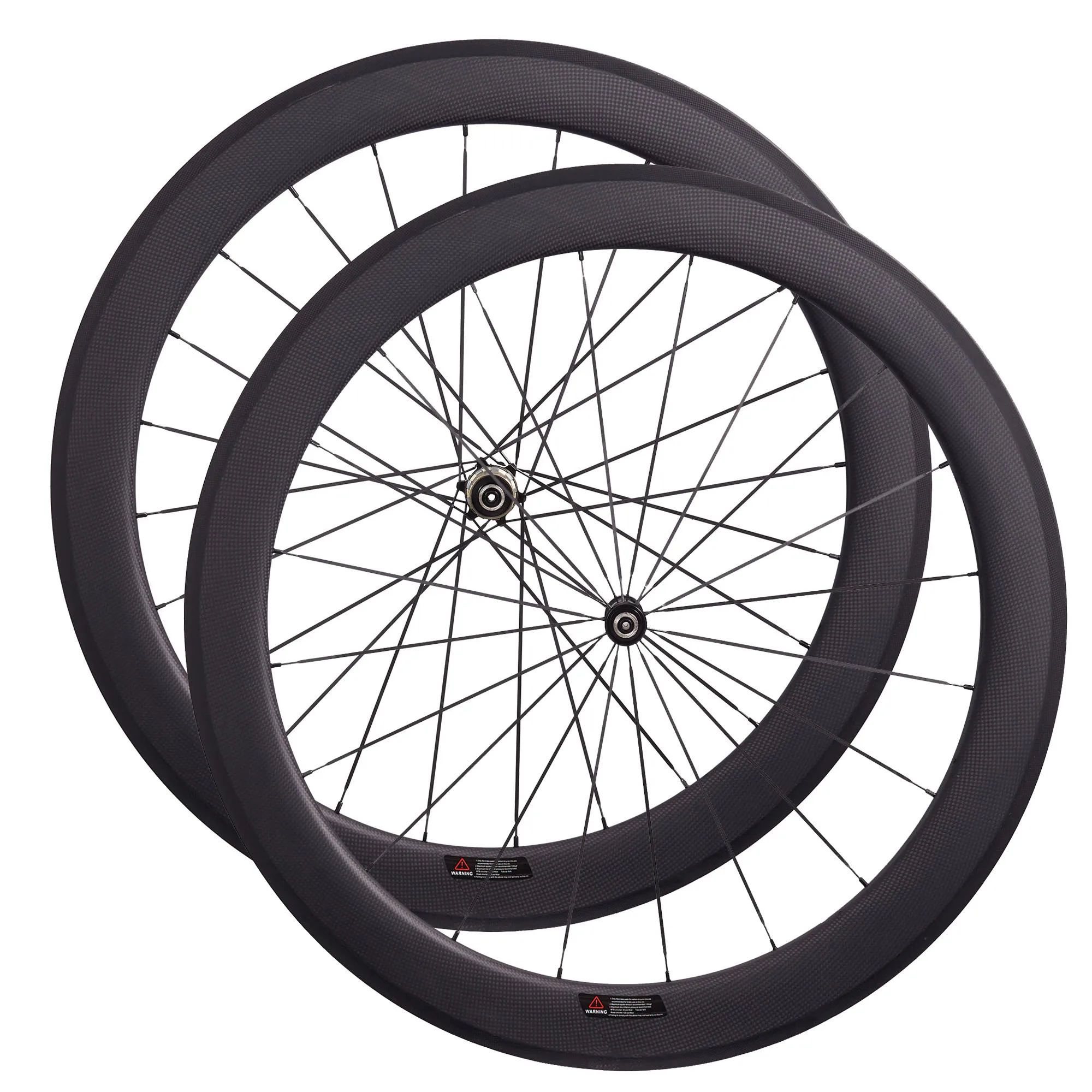

38mm 50mm 60mm clincher with AS511SB FS522SB hub
