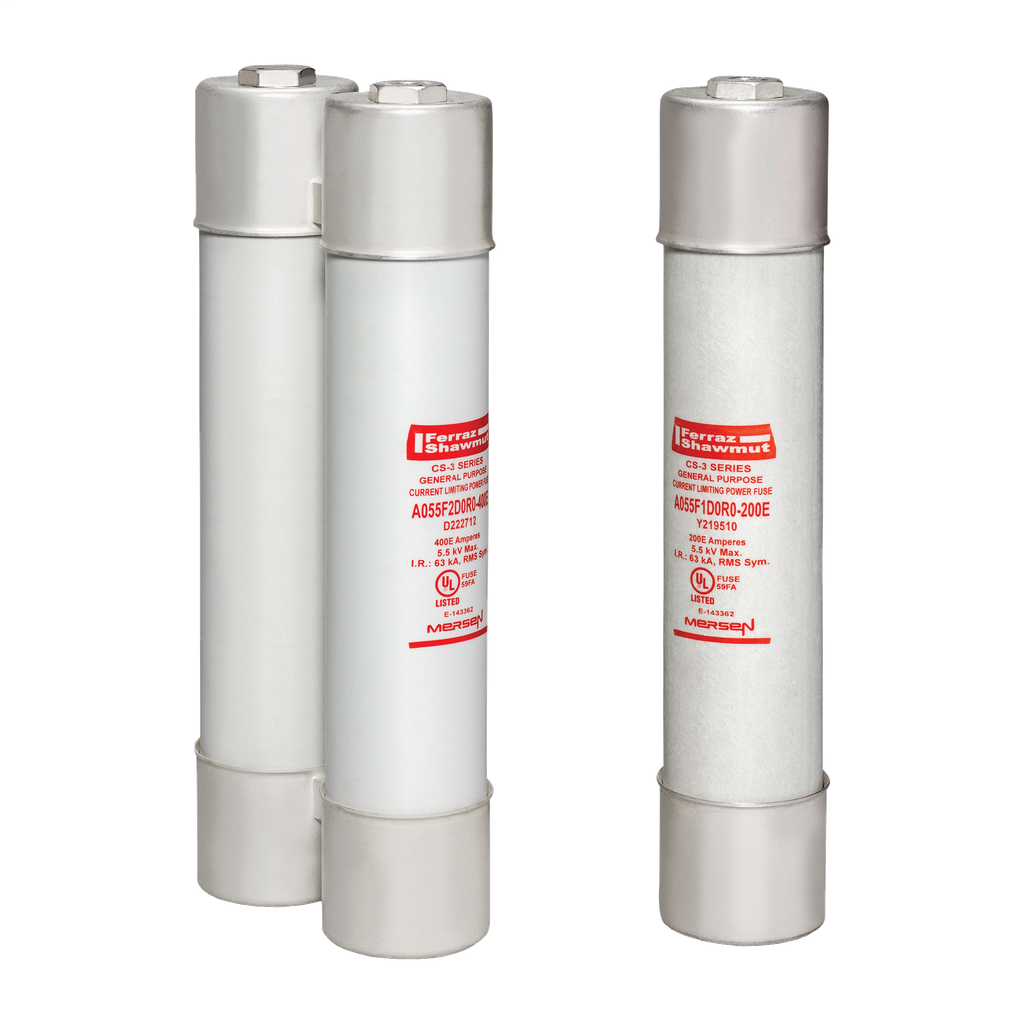

Complete Medium Voltage Fuse 5500v 15a E-rated Ferrule Mount Striker D0r0 Series Collection [Uw3LapV5]

Features

• Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment
• Ferrule mounting for standard clips and interchangeability with other brands of fuses
• Current-limiting for superior equipment protection
• Non-venting for silent operation
• Metal embossed catalog number and manufacturing date for lasting identification
• Outdoor usage for the 9F62 and 9F60 type EJO

Certifications

• Some UL listed to standard File E143362

Specifications

• Blown-fuse indicator to give positive identification of open fuse: Amp-Trap
• Max Operating Temp: 80 °C
• Max Storage Temp: 80 °C
• Min Storage Temp: -25 °C
• Ampere Rating: 15 A
• Rated Voltage Ac Ul: 5500 V
• Ac Max I R Breaking Capacity I1: 63 kA
• Product Diameter: 3 in
• Country Of Origin: MX
• Product Line: 5.5kV Ferrule Mount Transformer Fuses
• Product Brand: Amp-Trap®
• Body Insulating Material: PolyTube
• Connection Terminal Material: Silver-Plated Copper
• Connection Terminal Type: Ferrule
• Speed Characteristic: E-Rated
• Mounting: Clip
