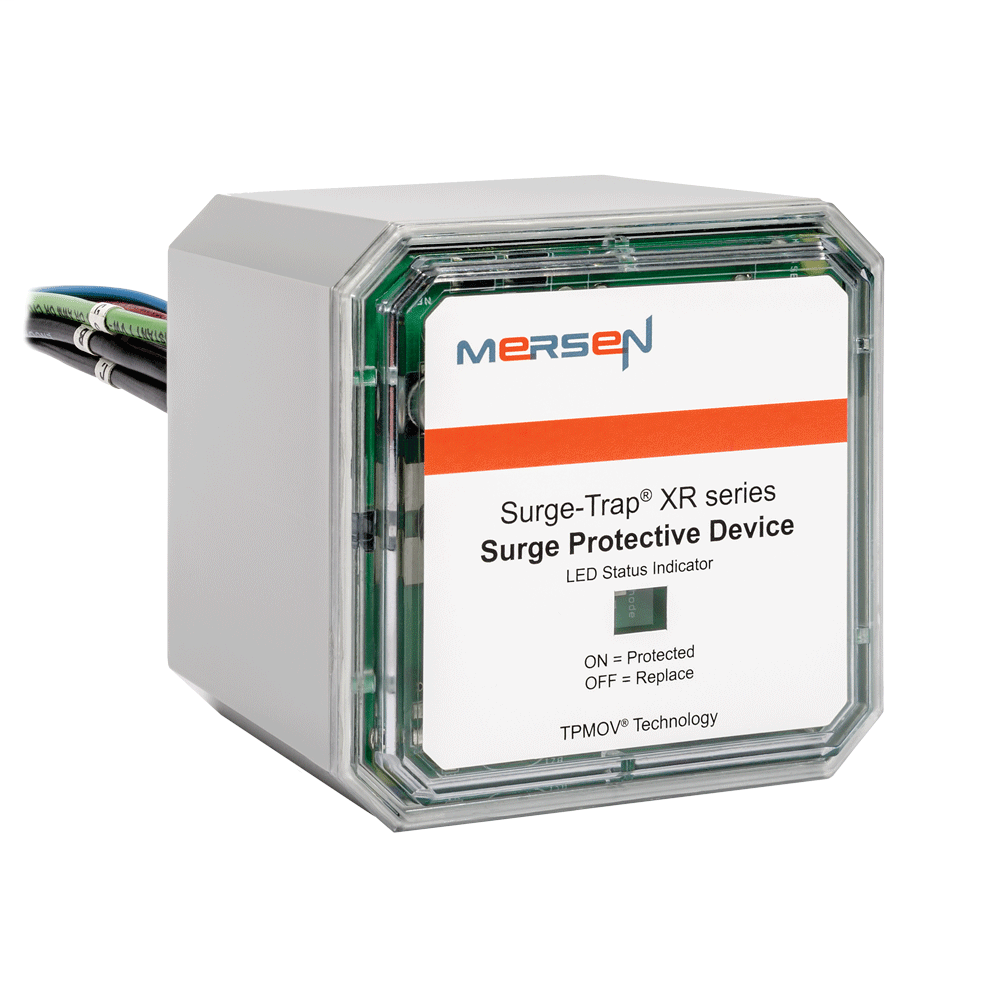

Fast Shipping Spd - Type 1 St-xr Series 240/120v L-l Vpr 1000v L-l Mcov 300v 50 Ka Led Ind Now 65% Cheaper [PISYxa35]

Features

• Designed with the industry leading Mersen TPMOV® Technology
• LED status indicator (ON = Good, OFF = Replace)
• NEMA 4X enclosure for outdoor or indoor use
• Fits 3/4" knockouts with 3' leads for easy installation
• Optional mounting bracket for surface mount applications
• Optional audible alarm and remote dry contacts
• For use in ANSI/UL Type 1 or 2 SPD installations
• Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional)
• 5-year warranty

Certifications

• ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
• CSA C22.2, Type 1 SPD
• ANSI/IEEE C62.41.1, C62.41.2, C62.45
• UL96A Lightning Protection
• RoHS Compliant

Specifications

• Frequency Hz: 50/60 Hz
• Max Operating Temp: 85 °C
• Max Storage Temp: 85 °C
• Min Operating Temp: -40 °C
• Min Storage Temp: -40 °C
• Short Circuit Current Rating Sccr: 200 kA
• Mcov L-G: 300 V
• Mcov L-L: 300 V
• Mcov L-N: 150 V
• Nominal Operating Volt Rating Un: 240/120 V
• Vpr L-G: 1000 V
• Vpr L-L: 1000 V
• Vpr L-N: 600 V
• Country Of Origin: MX
• Product Line: Surge-Trap® Type 1 STXR Series SPD
• Product Brand: Surge-Trap®
• Installation Mounting: Panel Mount
• Wire Connections: Pre-wired
• Flammability Rating: UL94-5VA
• Ul Spd Type: Type 1
• Housing Material: Polycarbonate
• Ac Or Dc: AC
• Max Discharge Current Imax 8 20: 50 kA per phase
• Nominal Discharge Current: 20 kA
• Protection Modes: L-G, L-N, L-L
• System Configuration: Split Phase
