How much do you know about your facility's garage door? Is it properly adjusted, lubricated and reliable? How many opening and closing cycles has the door seen? Are the panels rusting, dented, beat out? Is the spring about to blow? We are here to help you determine the answers to these questions.

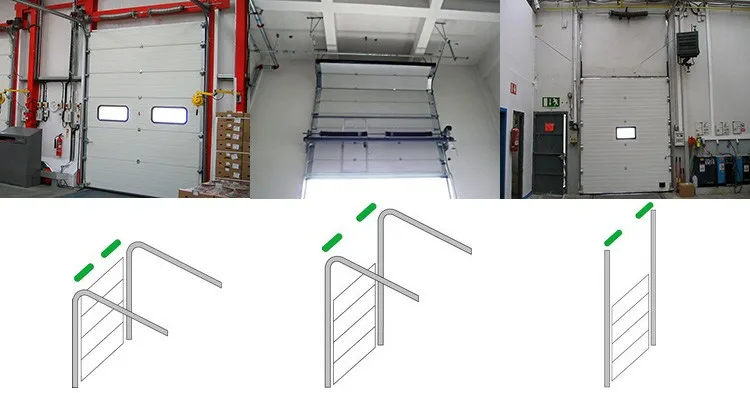

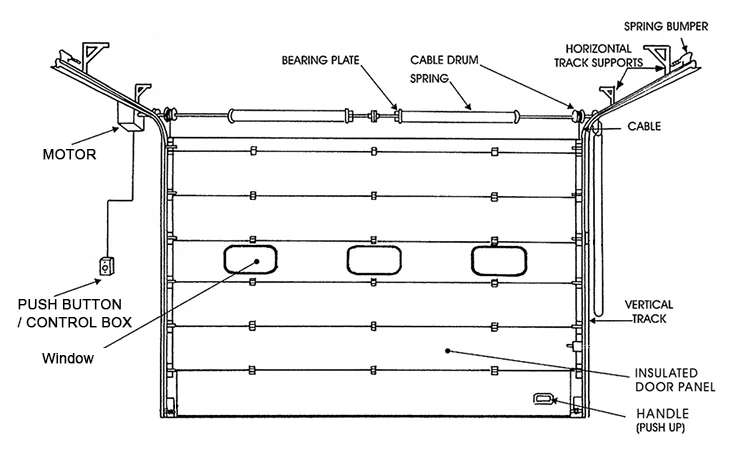

Sectional Doors are one of the most common types of garage doors and are composed of solid panels interlocked with hinges that roll up above the opening on a track. Our doors come in a variety of insulation and speed options to best suit the needs of the facility. We like to think of the overhead door as a "moving wall" in your facility, and not just a door. There are many variables at play - quality of the components, insulation ability, and the quality of the installation, among other considerations.
Jianda industrial overhead sectional door has many advantages,windproof,heat insulation,long uselife,convenient to operate and good security,They are widely used in:medium-to-high grade workshop,warehouse and the high headroom buildings.
Send us a message or give us a call today for a free consultation about your sectional door.

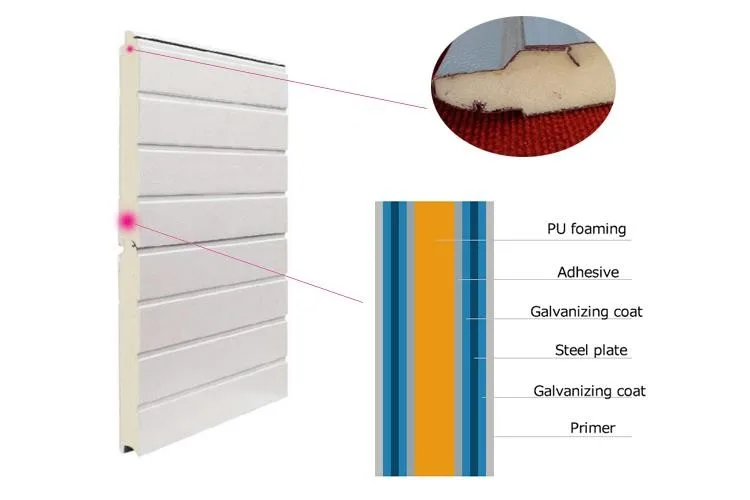

Door panel The door body is composed of double layers of high quality galvanized steel plate, embossed middle filled with fire prevention, insulation materials, with high strength, strong and durable, good insulation and sound insulation effect, surface spray plastic, effectively prevent corrosion.
2. Safe system
Relible properties of security Jianda industrial door is specially installed prevent prying deviceto protect your prosperity.
Spring break safety standard The end of the spring is installed safety device, which can prevent the spring axis and wire rope dropping down once the spring break.
Prevent falling device Can ectively prevent the door body falling down suddenly once the wire rope break , ensure the safety of person and products.
Airbag Have the airbag protection devices.
3.Motor
|
Power
|
220V/380V
|
Max Brake power(W)
|
AC380V/50HZ
|
|
Sink current(A)
|
20A
|
Turn the power output torque(rpm)
|
60N.m
|
|
Protection class
|
IP55
|
Power output maximum speed
|
1400r/min
|
4.Control system and others
Perfect control system Our industrial door panel, motor and control system are integrated as one unit is safe,reliable and convenient to operate, and it can be operated manually when power off.PLC high frequency controller , which meet the european requirement of the fire design code DIN14092
Small door and transparent windows Door closer and the safety contact ensure the big door can only run when the small door is close.The crystal inspection window provide the good lighting preformance.
Adjustable pulley brackets Specially designed pulley bracket will be convenient for you to adjust the bearing and the pulley, to ensue the door run steadily and without noisy.
Perfect seal around the door High quality seal material ensure the door perfect sealing and heat preservation function.

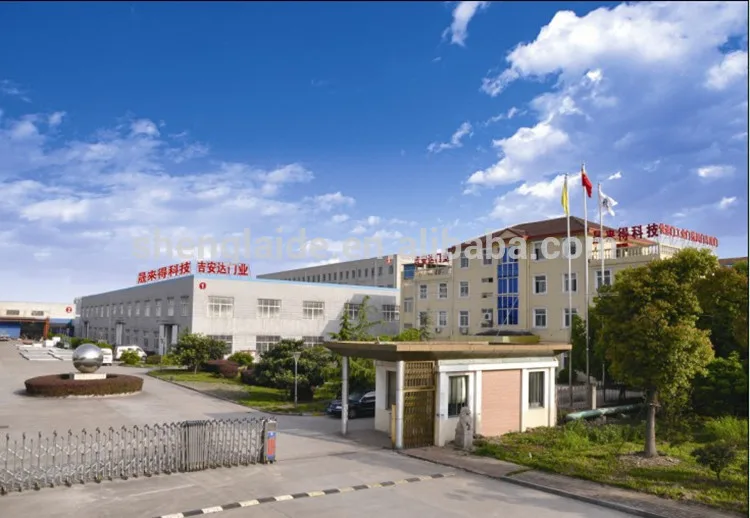

We are a professional enterprise intergrating designing,manufacyuring and installation of various of doors.
Jianda is one member of the permanet committee unit of Standardization Council of State Construction department,honered as the model company of the "AAA",win the "Most Popular Brand in jiangsu Market""Observe Contracts And Keeping Promise "our products passed ISO 9001-2000 authentication in 2002 ,whats more,we are the only automatic door enterprise ,which continually won the title "Recommended Products "of "Wuxi Consumer Association " for 5 years .
Customizable design
Professional team of engineers, for your exclusive custom.
Factory directly
We will provide reasonable price, controllable delivery time, multiple quality inspection before delivery.
After-sale worry-free
professional after-sale team, all-weather for you to answer.
Q1. How to install your product,is it difficult?
A: Easy to install, just screw, no welding.If you need, installation vedio can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q2. Whether the money I paid is safe?
A: Of course your money is safe. Our company had been found more than 20 years. A lot of customers know our honest attitude. And you can pay money by alibaba. It can ensure your money's safe.
Q3. Can you do the full set products according to my project drawing?
A: Yes we can, our engineer will check your project drawings to make sure its accuracyfor each different fittings and quantity.
Q4. How about your delivery time ?
A: Loading Port: Shanghai,Ningbo or according to your requirements.General around 15-20 days after sample confirmed.
Q5.how about your payment terms?
A: T/T ( with 30% deposit ),L/C at sight.,Western Union
