Halloween Special Bldc Belt Motor 6374 190kv 3250w For Electric Skateboard Holiday Edition [PgqmKwHM]

Spec:

• Max Power: 3250 Watts
• Max Current: 85 Amps
• Max Volts: 12S
• Max Torque: 8Nm
• Motor Resistance: 0.05Ohm
• Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
• Weight: 1.9 lb / 0.86 kg
• The motor length:74mm
• The motor diameter: 63mm
• SHAFT: Diameter 8mm, 32mm length, 3x3x20mm keyway slot.
• Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
  • Wire configuration:
    • Blue = A
    • Black = B
    • Yellow = C
• Stator: 0.2mm thickness lamination japan steel
• Magnet: N42SH high temp curve magnet
• BLDC Motor
• The number of pole: 14

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch

• Internal PCB with 120 Degree Hall Effect Sensors.
• Motor can be used with or without a sensor. Sensorless operation is most common.
• VESC Sensor Wires required to use with VESC.

Shipping

• 6374 190KV EPOWER Motor (Fits 63mm Motor Mount)
• If you choose with motor pulley, will ship steel material

What's Our Product Feature?

• Stator: Lamination Japan steel
• 12awg high strand silicone wire with 4.0mm gold bullet connectors.
• Both support sensor and sensorless mode!

Reference Information

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
•  Screws to mount the motor are not included with the motor.
• The key for keyawy is included with motors for shipping

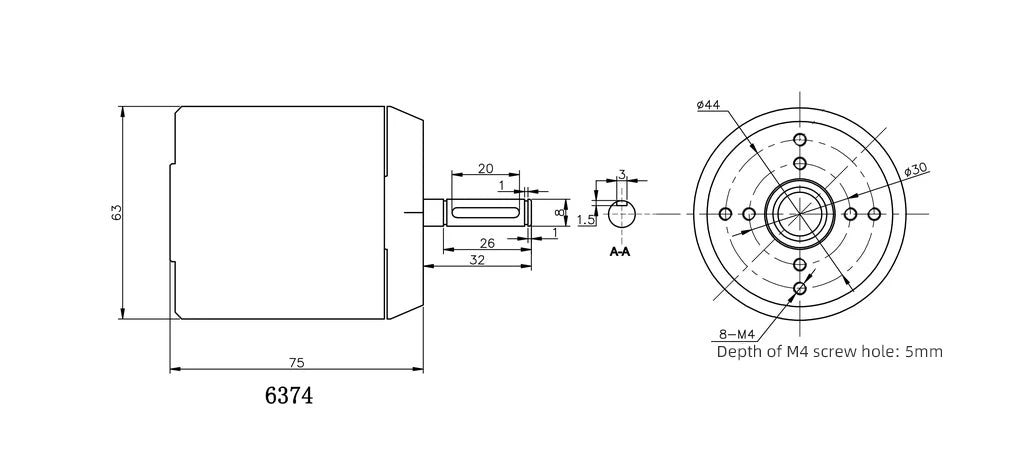

• The mechanical diagram:
